Steel reducers

Butt welding reducers are produced by pressing. The semi-finished product is rolled seamless tubes.

Reducers are mainly used as part of pipelines in the construction, energy engineering and mining industry.

Dimensions of welding reducers

OUTER DIAMETER (D)	26,9 – 114,3 mm (NPS 3/4 – 4)

WALL THICKNESS (T)	2,3 – 3,6 mm

Dimensions of delivered reducers are shown in dimensional table.

Buttwelding steel fittings – butt welding reducers

Dimensional	standard	SIZES (OD x WT)
EN	10253-1	26.9 x 2.3 – 114.3 x 3.60 mm [20 – 100 DN] [3/4 – 4 NPS]
ČSN	13 2200	26.9 x 2.3 – 114.3 x 3.60 mm [20 – 100 DN] [3/4 – 4 NPS]
ČSN	13 2385	26.9 x 2.3 – 114.3 x 3.60 mm [20 – 100 DN] [3/4 – 4 NPS]
DIN	2616-2	26.9 x 2.3 – 114.3 x 3.60 mm [20 – 100 DN] [3/4 – 4 NPS]

Steel for butt welding reducers

Reducers are made from carbon and low alloy steels.

Buttwelding steel fittings – butt welding reducers

Standard	TDC	Steel grade (open product)	Dimensional standard
ČSN	13 2370	11 353	13 2200
DIN	2609 (F,G)	St 35.8	2616-2
ČSN	13 2370	12 021	13 2385
STN	13 2370	11 353	13 2200
DIN	2609 (A)	St 37.0	2616-2
STN	13 2370	12 021	13 2385
EN	10256-1	S235	10253-1

Testing of welding reducers

The input tubes and ready made reducers are tested according to requirements and the appropriate standards.

Ends customization of the reducers

Upon agreement it is possible to supply reducers with a wall thickness of more than 3 mm with adjustment for a weld according to DIN 2559 standard

Packaging of welding reducers

Reducers are packaged:
(a) in cardboard boxes or
(b) metal pallets.

Marking of the welding reducers

Reducers are marked as required by standards or agreement.

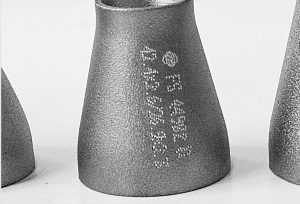

Marking is done usually by stamping the agreed data.

Certificates for welding reducers

Certificates are issued according to either:

DIN 50 049 or
EN 10 204.

Dimensional tolerances of welding reducers

Dimensional tolerances are in accordance with relevant standards.

Heat treatment, condition of delivery and surface

The input tubes used for production of reducers are heat treated.

Reductions are delivered with the inner and outer surface descaled not preserved, without surface protection or with surface treated by blasting.
